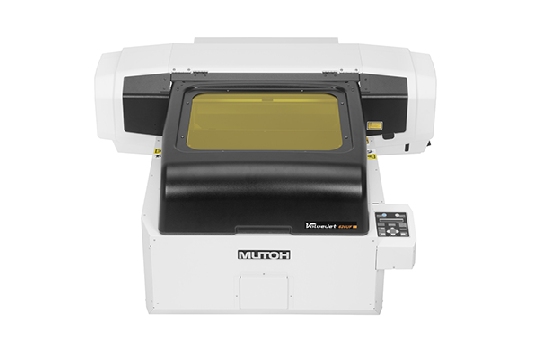

MUTOH VJ-626UF

The next new generation flatbed 6-color LED-UV printer supports the maximum media size of A2+ 150mm/5.9″ thickness

A newly launched VJ-626UF is MUTOH’s next-generation LED-UV curable flatbed inkjet printer.
The VJ-626UF supports the maximum media size of 594mm (23.4″) x 483mm (19″) , and also enables direct printing onto objects up to 150mm (5.9″) thick with the automatic table lifting system. The obstacle sensor detects the media at the start of printing, and the table height is automatically adjusted to fit the media height. The printer will deliver exceptional print quality on a wide variety of solid materials and objects including ABS, Alu-board, PC, PET, PMMA (acrylic), PS, PVC, etc. The VJ-626UF provides improved versatility.
An energy-efficient LED-UV lamp ensures ultra-sharp, safe & ready to use prints. Its reduced working temperatures also allow printing onto heat sensitive substrates.
The multi-purpose VJ-626UF printer will produce high quality output and is specifically targeted at short run items or one-off designs of products and their prototypes, personalised gifts, packaging, souvenirs, awards, specialty industrial items as well as labels, decals, signs, etc.
*Ink adhesion will be vary depending on substrate type and brand. Individual testing is required.


The maximum media size of A2+ 150mm/5.9″ thickness

An energy-efficient LED-UV lamp

MUTOH’s LED-UV ink

CMYK + White and Varnish

White ink circulation system integrated

Variable Dot Technology

Automatic table lifting system

Integrated vacuum table

LED pointer

A full front cover with safety consideration design

Maintenance cover

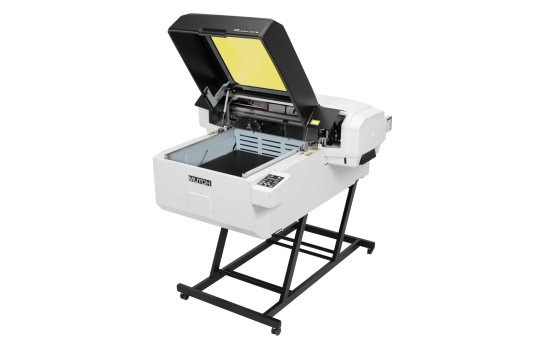

An option stand

Bundled Windows® printer driver

Bundled image layout application « Layout and Print Tool 2 »

Bundled layer printing application « ValeJet Layer Editor »

Model Name VJ-626UF
Printer Technology Drop-on-demand Micro Piezo Inkjet Technology
Print Head 1
Max. Media Size 483 mm (19″) x 594 mm (23.4”)
Max. Media Thickness 150 mm (5.9″)
Max. Media Weight 6 kg (13.2lbs)
Max. Print Area 473 mm (18,6”) x 584 mm (23″)
Media Drying System Long-life LED-UV curing lamp
Height adjustment Automatic table lifting system(Available setting by numerical input from the operation panel)
Vacuum System Standard integrated – electronically adjustable hold-down strength
No. of Ink Slot 6
Ink Type LED-UV ink
Ink Colors KCMY, white+ varnish
Ink Volume KCMY, white, varnish: 220ml cartridge, 800ml bag (white: 500ml bag only)
Print Resolutions 1440/1080/720dpi (3 modes as standard +3 modes as custom*)
Interface Ethernet (10 Base-T/100 Base-TX)
Heater Control System N/A
Power Supply AC 100-240V – 50/60Hz±1Hz
A-property Acoustic Power Level (Actual Measured Value) 67.2 dB or less
Printer Accuracy Guaranteed Environment Temperature: 20~32℃ (68~89.6 °F) Humidity: 40~60%RH (Non Condensing)
Power Consumption Operating Status: 300W or less
Machine Measurements (W) x (D) x (H) 1188 x 1533.6 x 604.3 mm (46.8″x 60.4″ x 23.8″)
Packing Size (W)x (D) x (H) Printer: 1316 x 1626 x 842.6mm (51.8″x 64″x 33.2″), Weight: 165kg (363.1 lbs)
Main Unit Weight Printer: 120kg (264.9lbs)
